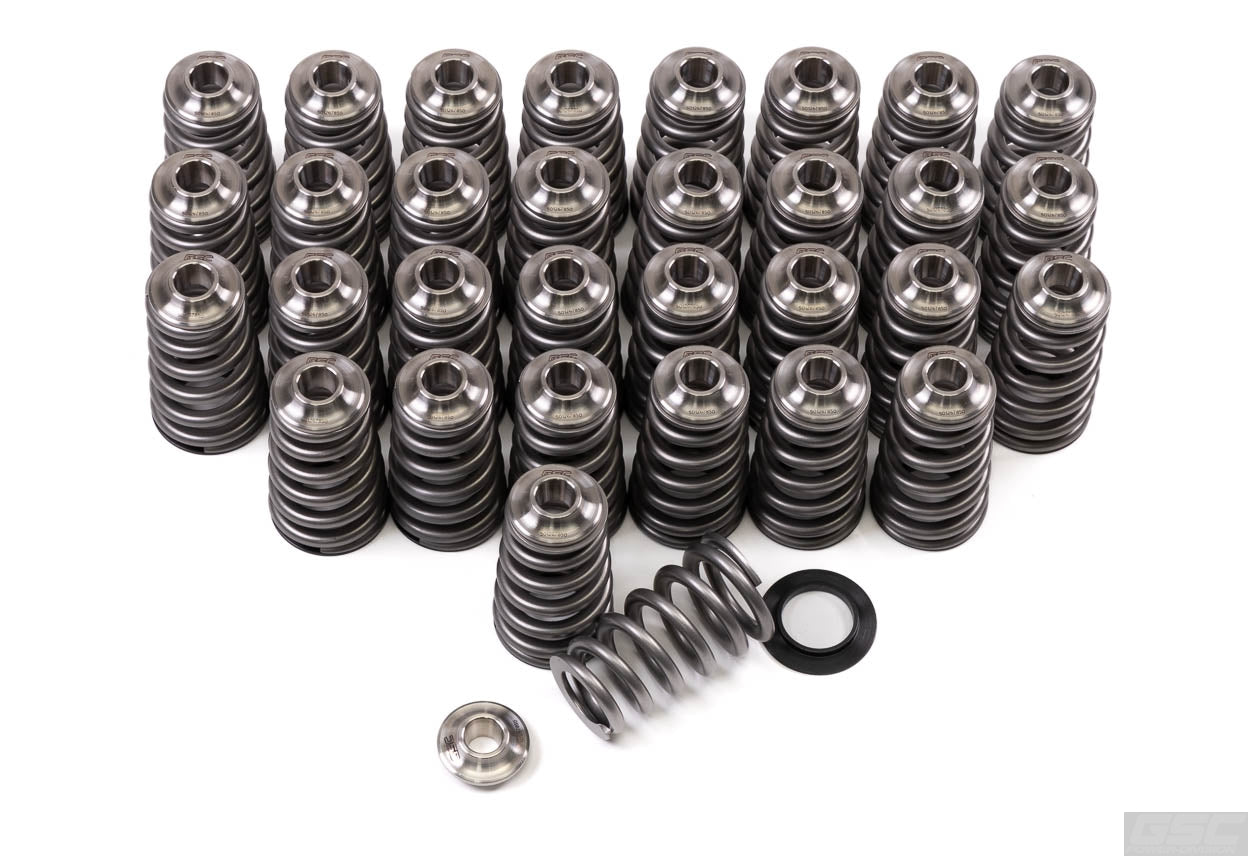

GSC P-D Ford Mustang 5.0L Coyote Gen 3 Gen 4 Conical Valve Spring and Ti Retainer Kit
78200
GSC P-D Ford Mustang 5.0L Coyote Gen 3 Gen 4 Conical Valve Spring and Ti Retainer Kit
78200
GSC Power-Division High Pressure Ovate Conical Spring kit with Ti Retainer and Spring seats for the Ford Gen 3 Coyote 5.0 For the F150 and Mustang. Also fits Gen 4 Mustang Coyote only.
- Installed: 97 lbs @ 1.621"
- Open: 295 lbs @ 1.020"
Check your valve spring install heights here
| GSC5012 High Pressure Ovate Conical Valve Spring Kit with Ti Retainer and seats for Gen 3 (F150 & Mustang), and Gen 4 Mustang Coyote |
|||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure | Maximum Valve Lift (in) |
| Ovate Conical | 0.960 | 1.621 |
97 |
295 lbs @ 1.020 | 0.600 |
- Max boost: 30+ psi
