Edelbrock Cylinder Heads 1939-48 Model Ford Flatheads w/ Block Letter Logo (Pair)
85899
Edelbrock Cylinder Heads 1939-48 Model Ford Flatheads w/ Block Letter Logo (Pair)
85899
This item is either made to order or has limited inventory. Please reach out to confirm lead times if needed.

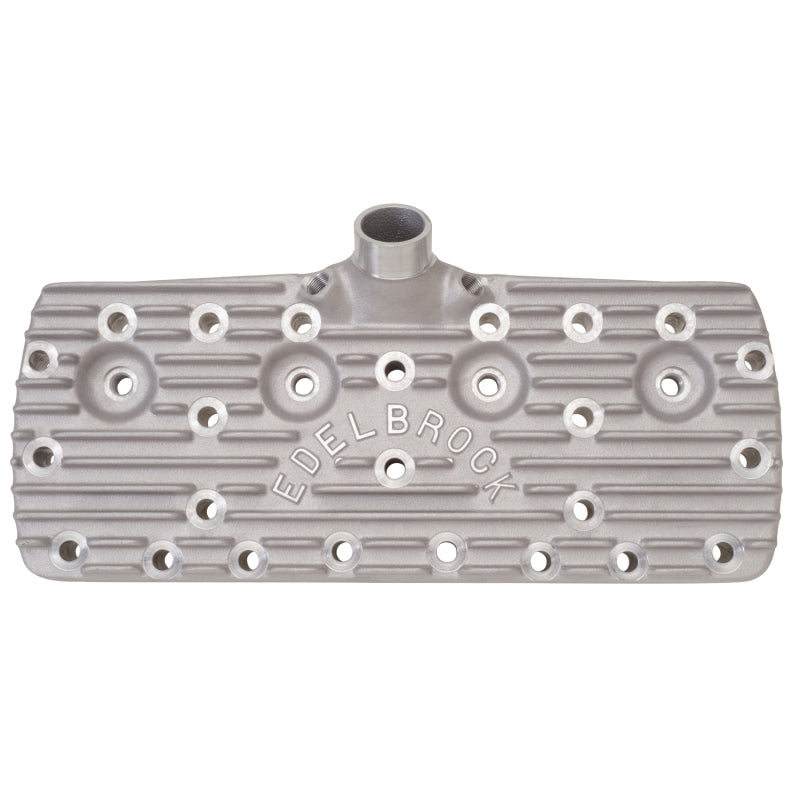

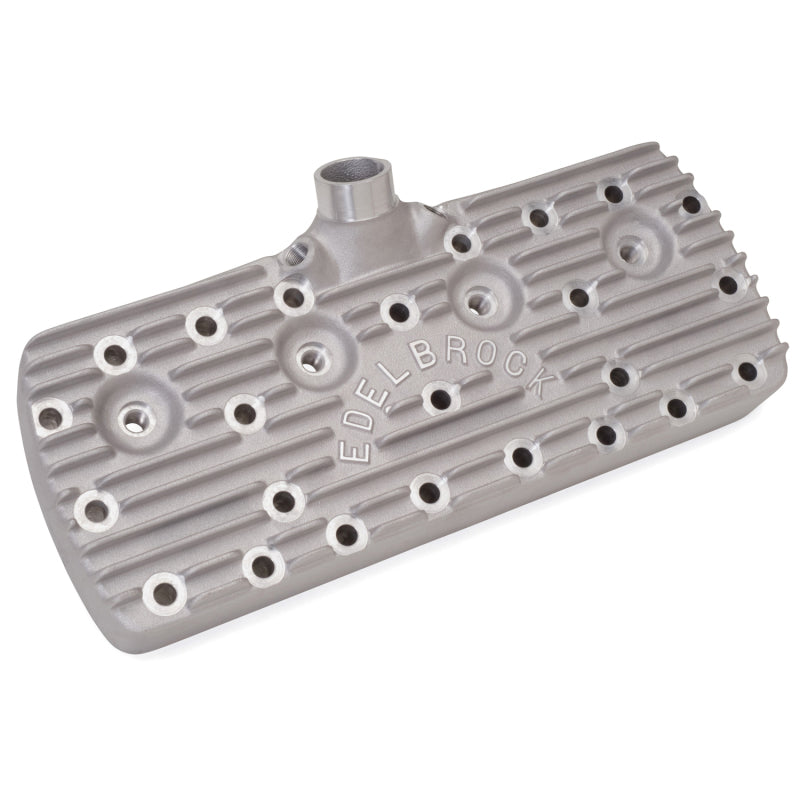

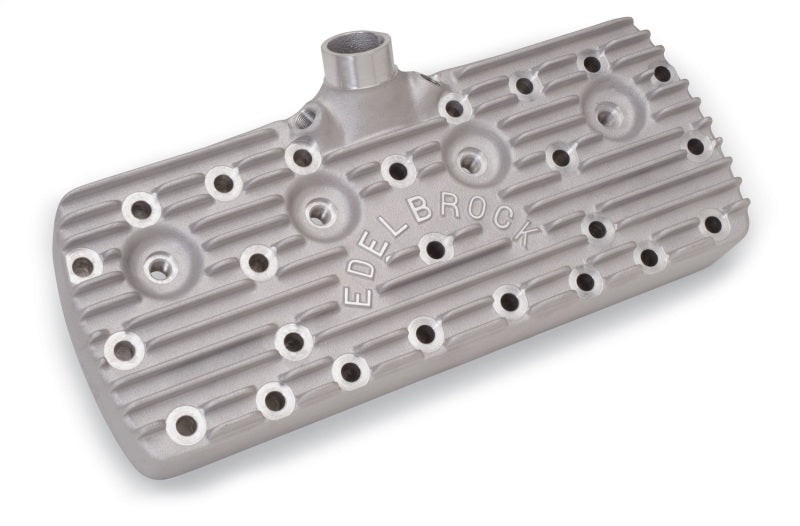

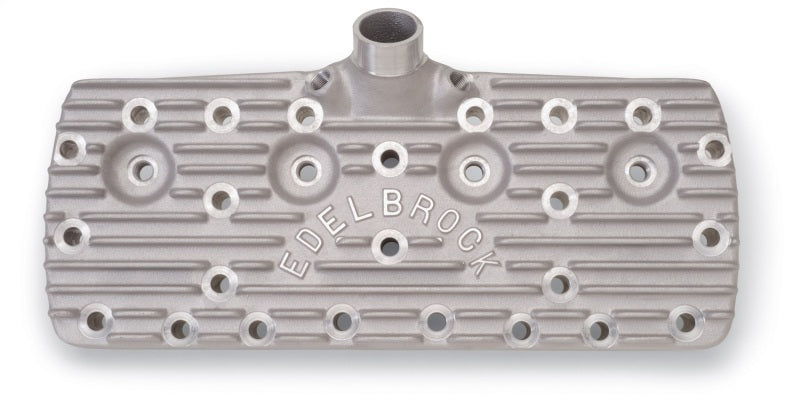

Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. These heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16 base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8 stroke. High Lift/Large Chamber versions feature a new raised roof combustion chamber design that is CNC machined for high lift cams and is perfect for reducing compression in supercharger applications or on low octane fuel. High Lift heads have increased valve clearance and increased flow capacity. Match these heads with our popular Ford Flathead Intake Manifolds.
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1938-1940,1942-1947 | Ford | 1 Ton Pickup | Base |
| 1938-1940,1942-1947 | Ford | 1/2 Ton Pickup | Base |
| 1938-1940,1942-1947 | Ford | 3/4 Ton Pickup | Base |
| 1940,1946-1948 | Ford | Deluxe | Base |
| 1948 | Ford | F1 | Base |
| 1948 | Ford | F2 | Base |
| 1948 | Ford | F3 | Base |
| 1948 | Ford | F4 | Base |
| 1942 | Ford | Model 21 A Deluxe | Base |
| 1938 | Ford | Model 82 A | Base |
| 1938-1940,1942,1946-1947 | Ford | Sedan Delivery | Base |
| 1939-1940 | Ford | Standard | Base |
| 1942,1946-1948 | Ford | Super Deluxe | Base |
| 1946-1948 | Mercury | Mercury | Base |
| 1941 | Mercury | Series 19A | Base |
| 1942 | Mercury | Series 29A | Base |
| 1939 | Mercury | Series 99A | Base |
| 1940 | Mercury | Series O9A | Base |
