Edelbrock Single Perf SBC C-Bolt Head Comp
102899
Edelbrock Single Perf SBC C-Bolt Head Comp
102899
This item is either made to order or has limited inventory. Please reach out to confirm lead times if needed.

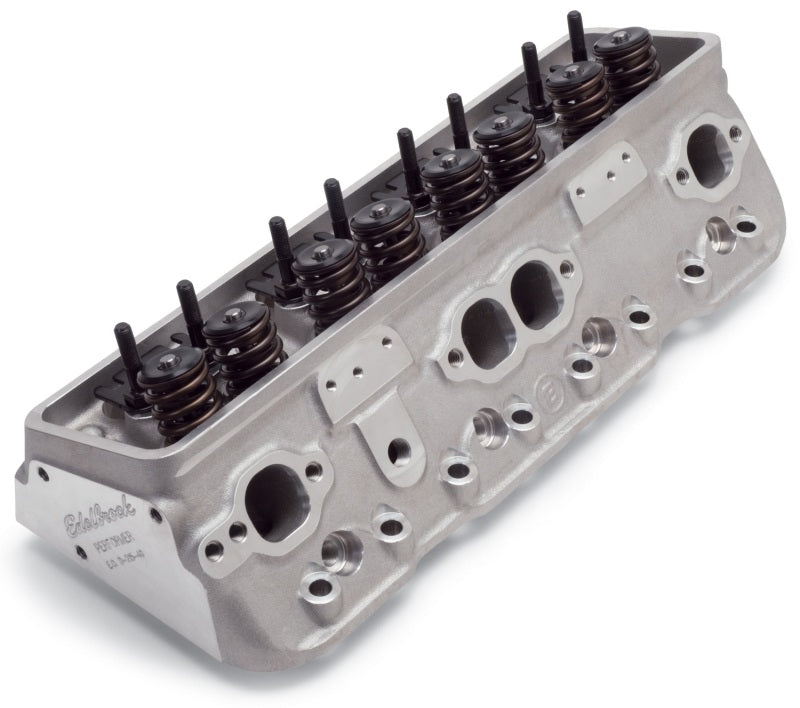

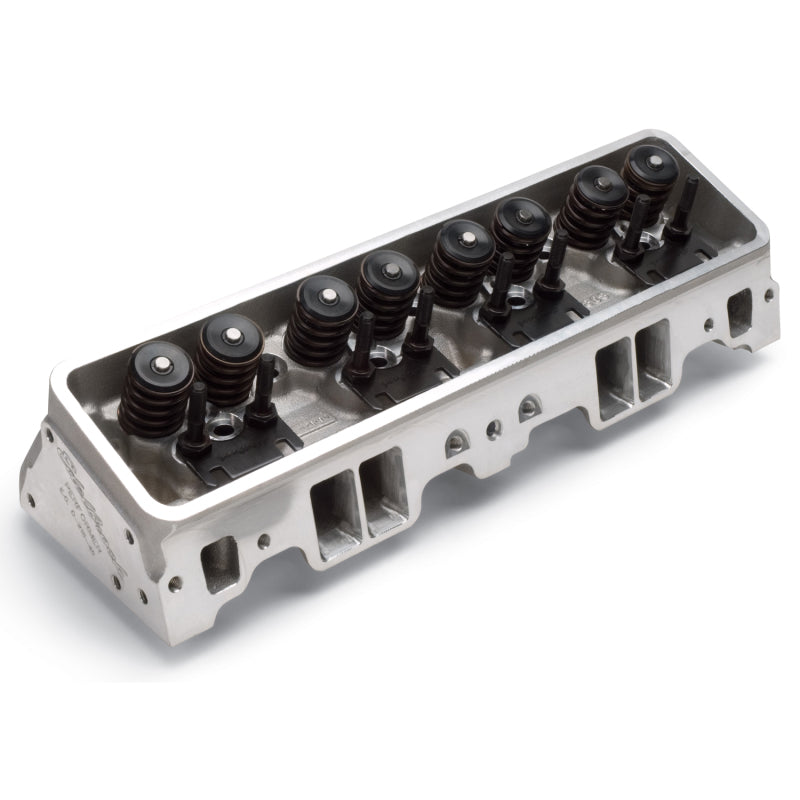

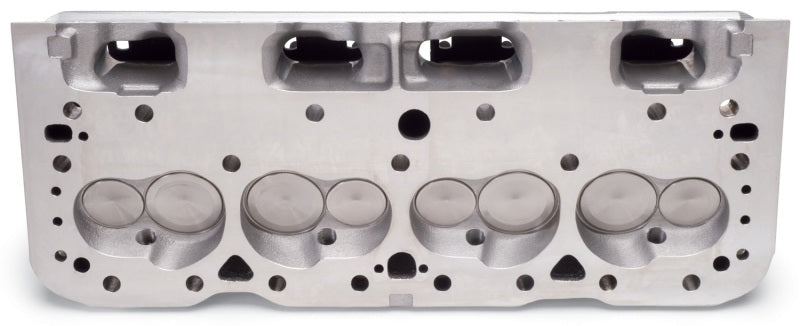

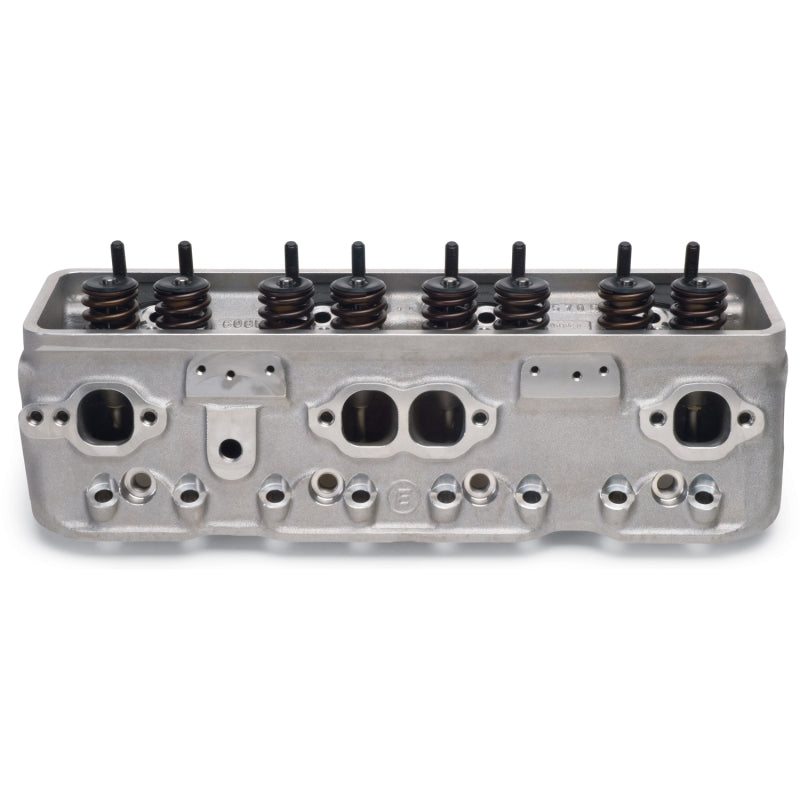

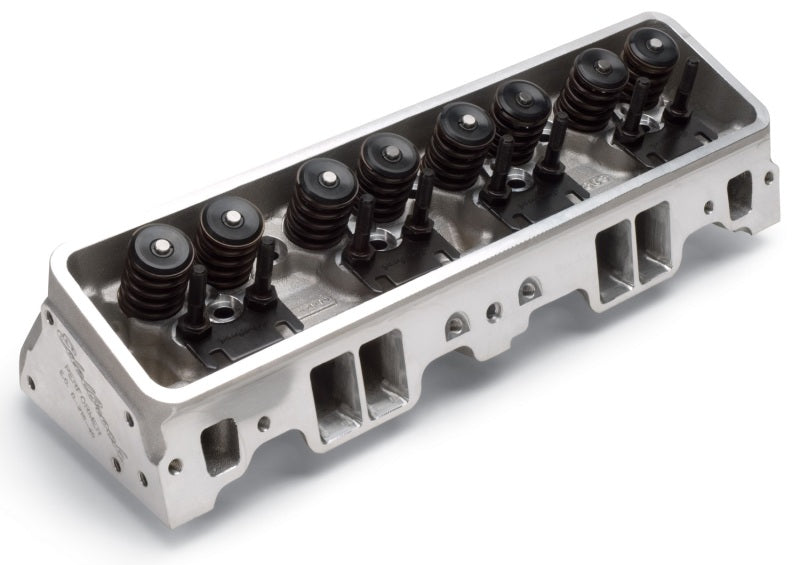

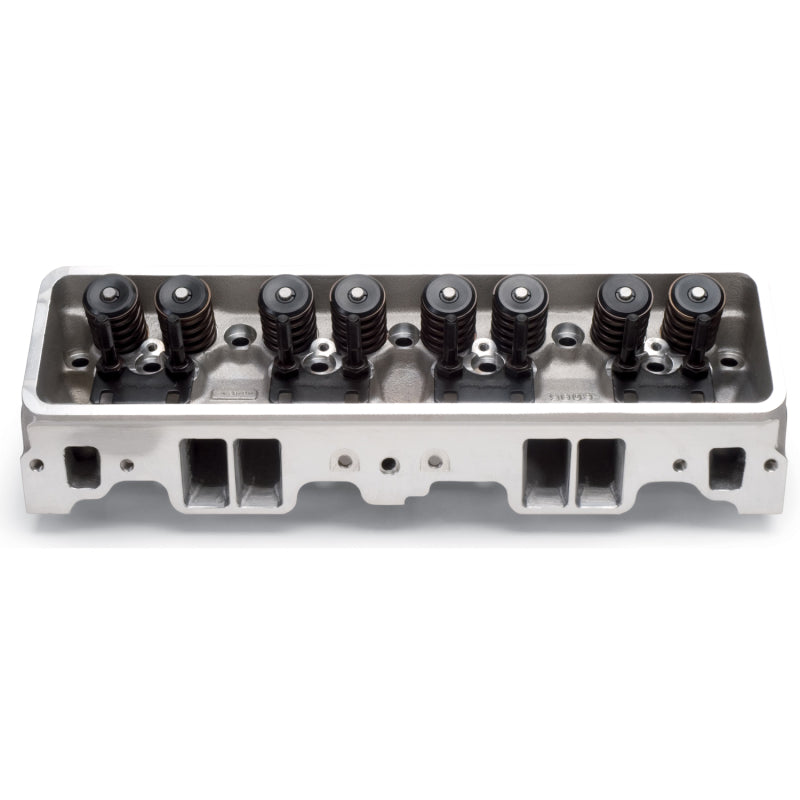

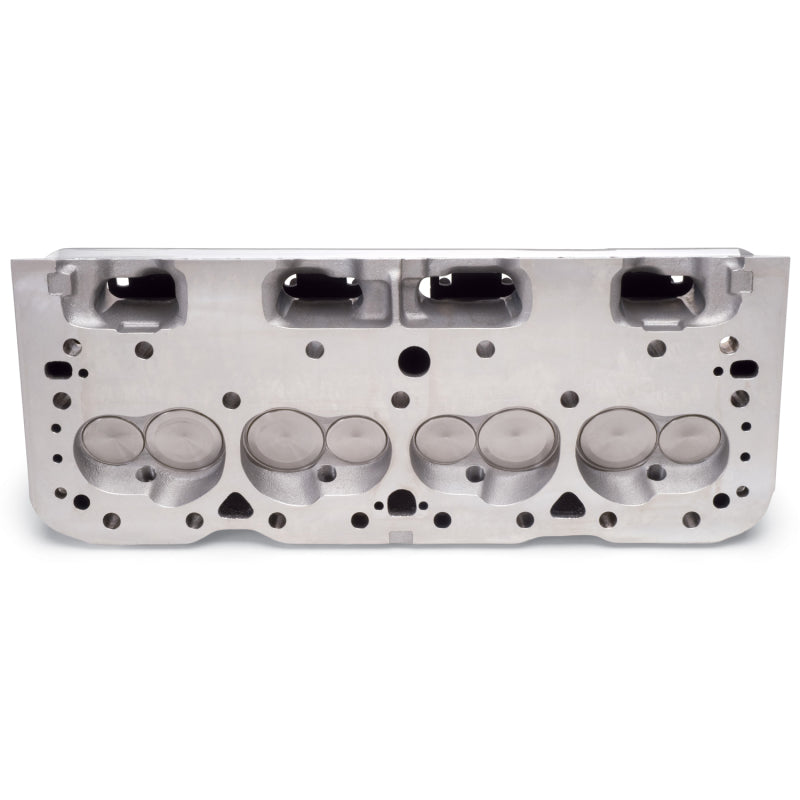

The Small-block Chevy cylinder head is designed for 1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with centerbolt valve covers. Performer centerbolt cylinder heads are 50-state street legal and accept factory centerbolt valve covers. The intake bolt pattern utilizes the 1987-95, 73° angle on the two center bolts. Will maintain stock compression ratio when used with the recommended head gasket. The Corvette centerbolt cylinder head is designed for 1986-91 Tuned Port Injected (T.P.I) 5.7L small-block Chevy Corvette engines originally equipped with centerbolt valve covers. Performer centerbolt cylinder heads are 50-state street legal and accept factory centerbolt valve covers. The intake bolt pattern utilizes the 1986-91 (straight) 90° angle on all bolts. Spark plugs are angled like stock O.E. heads. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Edelbrock pushrods #9632 are recommended. Requires hardened pushrods. Pedestal mount rockers. When using hot air choke Q-Jet carbs, choke kit #1932 is required. Intended for use on small-bore (3.736" - 4.00") 265, 283, 305 & 307 engines. Deck thickness: 9/16", rocker stud diameter: 3/8", pushrod diameter: 5/16" (width of slot in guide plate).
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1991-1993 | Buick | Commercial Chassis | Base |
| 1992-1993 | Buick | Roadmaster | Base |
| 1991-1993 | Buick | Roadmaster | Estate Wagon |
| 1992-1993 | Buick | Roadmaster | Limited |
| 1994 | Chevrolet | Blazer | Base |
| 1992-1993 | Chevrolet | Blazer | Cheyenne |
| 1987 | Chevrolet | Blazer | Custom Deluxe |
| 1988-1991 | Chevrolet | Blazer | Scottsdale |
| 1987-1994 | Chevrolet | Blazer | Silverado |
| 1994 | Chevrolet | Blazer | Silverado Sport |
| 1994-1995 | Chevrolet | C1500 | Base |
| 1988-1995 | Chevrolet | C1500 | Cheyenne |
| 1988-1992 | Chevrolet | C1500 | Scottsdale |
| 1988-1995 | Chevrolet | C1500 | Silverado |
| 1990-1995 | Chevrolet | C1500 | WT |
| 1992-1995 | Chevrolet | C1500 Suburban | Base |
| 1995 | Chevrolet | C1500 Suburban | LS |
| 1995 | Chevrolet | C1500 Suburban | LT |
| 1992-1994 | Chevrolet | C1500 Suburban | Silverado |
| 1994-1995 | Chevrolet | C2500 | Base |
| 1988-1995 | Chevrolet | C2500 | Cheyenne |
| 1988-1992 | Chevrolet | C2500 | Scottsdale |
| 1988-1995 | Chevrolet | C2500 | Silverado |
| 1994-1995 | Chevrolet | C2500 | WT |
| 1992-1995 | Chevrolet | C2500 Suburban | Base |
| 1995 | Chevrolet | C2500 Suburban | LS |
| 1995 | Chevrolet | C2500 Suburban | LT |
| 1992-1994 | Chevrolet | C2500 Suburban | Silverado |
| 1994-1995 | Chevrolet | C3500 | Base |
| 1988-1995 | Chevrolet | C3500 | Cheyenne |
| 1988-1992 | Chevrolet | C3500 | Scottsdale |
| 1988-1995 | Chevrolet | C3500 | Silverado |
| 1988 | Chevrolet | Camaro | Base |
| 1987-1990 | Chevrolet | Camaro | Iroc-Z |
| 1987 | Chevrolet | Camaro | LT |
| 1989-1992 | Chevrolet | Camaro | RS |
| 1992 | Chevrolet | Camaro | RS Heritage Edition |
| 1987 | Chevrolet | Camaro | Sport |
| 1987,1991-1992 | Chevrolet | Camaro | Z28 |
| 1992 | Chevrolet | Camaro | Z28 Heritage Edition |
| 1987-1992 | Chevrolet | Caprice | Base |
| 1987-1993 | Chevrolet | Caprice | Classic |
| 1987-1990 | Chevrolet | Caprice | Classic Brougham |
| 1993 | Chevrolet | Caprice | Classic LS |
| 1987-1990 | Chevrolet | Caprice | Classic LS Brougham |
| 1991-1993 | Chevrolet | Caprice | Classic LTZ |
| 1991-1993 | Chevrolet | Commercial Chassis | Base |
| 1988 | Chevrolet | Corvette | 35th Anniversary Edition |
| 1987-1991 | Chevrolet | Corvette | Base |
| 1987 | Chevrolet | El Camino | Base |
| 1987 | Chevrolet | El Camino | SS |
| 1987-1995 | Chevrolet | G10 | Beauville |
| 1987 | Chevrolet | G10 | Bonaventure |
| 1987-1995 | Chevrolet | G10 | Chevy Van |
| 1987-1995 | Chevrolet | G10 | Sportvan |
| 1987-1995 | Chevrolet | G20 | Beauville |
| 1987-1995 | Chevrolet | G20 | Chevy Van |
| 1987-1995 | Chevrolet | G20 | Sportvan |
| 1987-1995 | Chevrolet | G30 | Beauville |
| 1987-1995 | Chevrolet | G30 | Chevy Van |
| 1987-1995 | Chevrolet | G30 | Hi-Cube |
| 1987-1995 | Chevrolet | G30 | Sportvan |
| 1994-1995 | Chevrolet | K1500 | Base |
| 1988-1995 | Chevrolet | K1500 | Cheyenne |
| 1988-1992 | Chevrolet | K1500 | Scottsdale |
| 1988-1995 | Chevrolet | K1500 | Silverado |
| 1991 | Chevrolet | K1500 | Sport |
| 1990-1995 | Chevrolet | K1500 | WT |
| 1992-1995 | Chevrolet | K1500 Suburban | Base |
| 1995 | Chevrolet | K1500 Suburban | LS |
| 1995 | Chevrolet | K1500 Suburban | LT |
| 1992-1994 | Chevrolet | K1500 Suburban | Silverado |
| 1994-1995 | Chevrolet | K2500 | Base |
| 1988-1995 | Chevrolet | K2500 | Cheyenne |
| 1988-1992 | Chevrolet | K2500 | Scottsdale |
| 1988-1995 | Chevrolet | K2500 | Silverado |
| 1994-1995 | Chevrolet | K2500 | WT |
| 1992-1995 | Chevrolet | K2500 Suburban | Base |
| 1995 | Chevrolet | K2500 Suburban | LS |
| 1995 | Chevrolet | K2500 Suburban | LT |
| 1992-1994 | Chevrolet | K2500 Suburban | Silverado |
| 1994-1995 | Chevrolet | K3500 | Base |
| 1988-1995 | Chevrolet | K3500 | Cheyenne |
| 1988-1992 | Chevrolet | K3500 | Scottsdale |
| 1988-1995 | Chevrolet | K3500 | Silverado |
| 1987-1988 | Chevrolet | Monte Carlo | Base |
| 1987-1988 | Chevrolet | Monte Carlo | LS |
| 1987-1988 | Chevrolet | Monte Carlo | SS |
| 1987-1989 | Chevrolet | P20 | Base |
| 1987-1989 | Chevrolet | P20 | Step-Van |
| 1987-1995 | Chevrolet | P30 | Base |
| 1987-1990 | Chevrolet | P30 | Step-Van |
| 1987 | Chevrolet | R10 | Custom Deluxe |
| 1987 | Chevrolet | R10 | Scottsdale |
| 1987 | Chevrolet | R10 | Silverado |
| 1987 | Chevrolet | R10 Suburban | Custom Deluxe |
| 1987-1988 | Chevrolet | R10 Suburban | Scottsdale |
| 1987-1988 | Chevrolet | R10 Suburban | Silverado |
| 1989-1991 | Chevrolet | R1500 Suburban | Scottsdale |
| 1989-1991 | Chevrolet | R1500 Suburban | Silverado |
| 1988 | Chevrolet | R20 | Cheyenne |
| 1987-1988 | Chevrolet | R20 | Custom Deluxe |
| 1987-1988 | Chevrolet | R20 | Scottsdale |
| 1987-1988 | Chevrolet | R20 | Silverado |
| 1987 | Chevrolet | R20 Suburban | Custom Deluxe |
| 1987-1988 | Chevrolet | R20 Suburban | Scottsdale |
| 1987-1988 | Chevrolet | R20 Suburban | Silverado |
| 1989 | Chevrolet | R2500 | Silverado |
| 1989-1991 | Chevrolet | R2500 Suburban | Scottsdale |
| 1989-1991 | Chevrolet | R2500 Suburban | Silverado |
| 1988 | Chevrolet | R30 | Cheyenne |
| 1987-1988 | Chevrolet | R30 | Custom Deluxe |
| 1987-1988 | Chevrolet | R30 | Scottsdale |
| 1987-1988 | Chevrolet | R30 | Silverado |
| 1989-1991 | Chevrolet | R3500 | Cheyenne |
| 1989-1990 | Chevrolet | R3500 | Scottsdale |
| 1989-1991 | Chevrolet | R3500 | Silverado |
| 1995 | Chevrolet | Tahoe | Base |
| 1995 | Chevrolet | Tahoe | LS |
| 1995 | Chevrolet | Tahoe | LT |
| 1987 | Chevrolet | V10 | Custom Deluxe |
| 1987 | Chevrolet | V10 | Scottsdale |
| 1987 | Chevrolet | V10 | Silverado |
| 1987 | Chevrolet | V10 Suburban | Custom Deluxe |
| 1987-1988 | Chevrolet | V10 Suburban | Scottsdale |
| 1987-1988 | Chevrolet | V10 Suburban | Silverado |
| 1989-1991 | Chevrolet | V1500 Suburban | Scottsdale |
| 1989-1991 | Chevrolet | V1500 Suburban | Silverado |
| 1987 | Chevrolet | V20 | Custom Deluxe |
| 1987 | Chevrolet | V20 | Scottsdale |
| 1987 | Chevrolet | V20 | Silverado |
| 1987 | Chevrolet | V20 Suburban | Custom Deluxe |
| 1987-1988 | Chevrolet | V20 Suburban | Scottsdale |
| 1987-1988 | Chevrolet | V20 Suburban | Silverado |
| 1989-1991 | Chevrolet | V2500 Suburban | Scottsdale |
| 1989-1991 | Chevrolet | V2500 Suburban | Silverado |
| 1988 | Chevrolet | V30 | Cheyenne |
| 1987-1988 | Chevrolet | V30 | Custom Deluxe |
| 1987-1988 | Chevrolet | V30 | Scottsdale |
| 1987-1988 | Chevrolet | V30 | Silverado |
| 1989-1991 | Chevrolet | V3500 | Cheyenne |
| 1989-1990 | Chevrolet | V3500 | Scottsdale |
| 1989-1991 | Chevrolet | V3500 | Silverado |
| 1988-1993 | GMC | C1500 | Sierra |
| 1994-1995 | GMC | C1500 | Sierra SL |
| 1988-1995 | GMC | C1500 | Sierra SLE |
| 1994-1995 | GMC | C1500 | Sierra SLT |
| 1988-1993 | GMC | C1500 | Sierra SLX |
| 1994-1995 | GMC | C1500 | Sierra Special |
| 1992-1995 | GMC | C1500 Suburban | Base |
| 1992-1995 | GMC | C1500 Suburban | SLE |
| 1995 | GMC | C1500 Suburban | SLT |
| 1988-1993 | GMC | C2500 | Sierra |
| 1994-1995 | GMC | C2500 | Sierra SL |
| 1988-1995 | GMC | C2500 | Sierra SLE |
| 1994-1995 | GMC | C2500 | Sierra SLT |
| 1988-1993 | GMC | C2500 | Sierra SLX |
| 1992-1995 | GMC | C2500 Suburban | Base |
| 1992-1995 | GMC | C2500 Suburban | SLE |
| 1995 | GMC | C2500 Suburban | SLT |
| 1988-1993 | GMC | C3500 | Sierra |
| 1994-1995 | GMC | C3500 | Sierra SL |
| 1988-1995 | GMC | C3500 | Sierra SLE |
| 1994-1995 | GMC | C3500 | Sierra SLT |
| 1988-1993 | GMC | C3500 | Sierra SLX |
| 1987 | GMC | Caballero | Base |
| 1987 | GMC | Caballero | Diablo |
| 1987-1995 | GMC | G1500 | Rally |
| 1987-1995 | GMC | G1500 | Rally STX |
| 1987-1995 | GMC | G1500 | Vandura |
| 1987-1995 | GMC | G2500 | Rally |
| 1987-1995 | GMC | G2500 | Rally STX |
| 1987-1995 | GMC | G2500 | Vandura |
| 1987-1995 | GMC | G3500 | Magnavan |
| 1987-1995 | GMC | G3500 | Rally |
| 1987-1995 | GMC | G3500 | Rally Camper Special |
| 1987-1988 | GMC | G3500 | Rally Custom |
| 1987-1995 | GMC | G3500 | Rally STX |
| 1987-1995 | GMC | G3500 | Vandura |
| 1987-1995 | GMC | G3500 | Vandura Special |
| 1987-1991 | GMC | Jimmy | Base |
| 1987-1990 | GMC | Jimmy | Sierra Classic |
| 1988-1993 | GMC | K1500 | Sierra |
| 1994-1995 | GMC | K1500 | Sierra SL |
| 1988-1995 | GMC | K1500 | Sierra SLE |
| 1995 | GMC | K1500 | Sierra SLS |
| 1994-1995 | GMC | K1500 | Sierra SLT |
| 1988-1993 | GMC | K1500 | Sierra SLX |
| 1994-1995 | GMC | K1500 | Sierra Special |
| 1993 | GMC | K1500 | Sierra Sport |
| 1992-1995 | GMC | K1500 Suburban | Base |
| 1992-1995 | GMC | K1500 Suburban | SLE |
| 1995 | GMC | K1500 Suburban | SLT |
| 1988-1993 | GMC | K2500 | Sierra |
| 1994-1995 | GMC | K2500 | Sierra SL |
| 1988-1995 | GMC | K2500 | Sierra SLE |
| 1994-1995 | GMC | K2500 | Sierra SLT |
| 1988-1993 | GMC | K2500 | Sierra SLX |
| 1992-1995 | GMC | K2500 Suburban | Base |
| 1992-1995 | GMC | K2500 Suburban | SLE |
